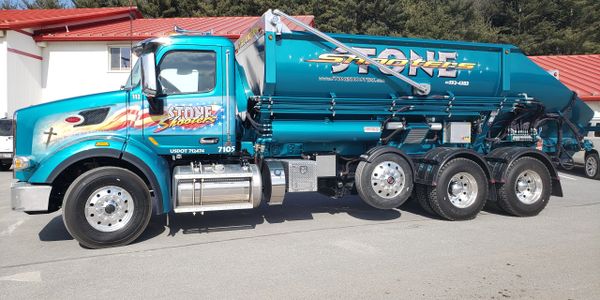

Stone Slinger Truck


Haul up to 20 tons per load Haul and convey sand, gravel, up to 1 ½” stone, crusher runs, dust, and some topsoils
Convey sand, stone, or gravel up to 70’ from the truck
12’ overhead clearance with stationary bed
19’ non-telescopic boom conveyor with adjustable belt speed
Convey 20 tons (13 cubic yards) in 20 minutes

 Specifications Tare Weight: 30,000 lbs Payload: 40,000 lbs (on road) / 42,000 (off road) Total length of truck including appendages = 33’5” Front axle (center) to rear axle (center) = 20’5” Width (tire to tire): 8’6” Width (mirror to mirror): 9’6” Height (for clearance): 13’6” Height (for loading): 11’
