telebelt 110

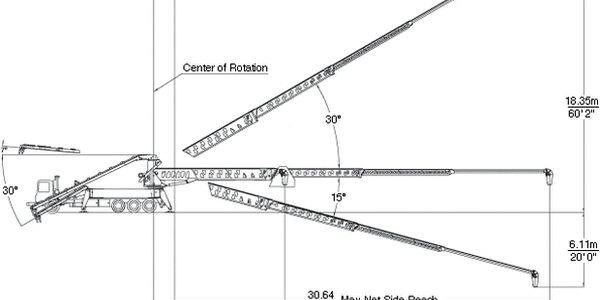

110 Ft horizontal reach
Max rated output for concrete, up to 150 yards per/hour
Max rated output for stone, approx. 250 tons per/hour
Handle concrete from 0” to 12” slumps (0 to 305 mm)
Place materials sized from sand to 4” (100 mm) stone/rock
Setup with out-riggers - 27’ wide, 65’ long, 16’ height
Materials can be loaded on site from a stockpile with an on-site loader or out of the coal chute of a dump truck.
Additional Information
110 Ft horizontal reach
Max rated output for concrete, up to 150 yards per/hour
Max rated output for stone, approx. 250 tons per/hour Handle concrete from 0” to 12” slumps (0 to 305 mm)
Place materials sized from sand to 4” (100 mm) stone/rock
Setup with out-riggers - 27’ wide, 65’ long, 16’ height
Materials can be loaded on site from a stockpile with an on-site loader or out of the coal chute of a dump truck.
